Sale price$25.89 USD
SKU: ZBDongle-E
Color:Black
Quantity:

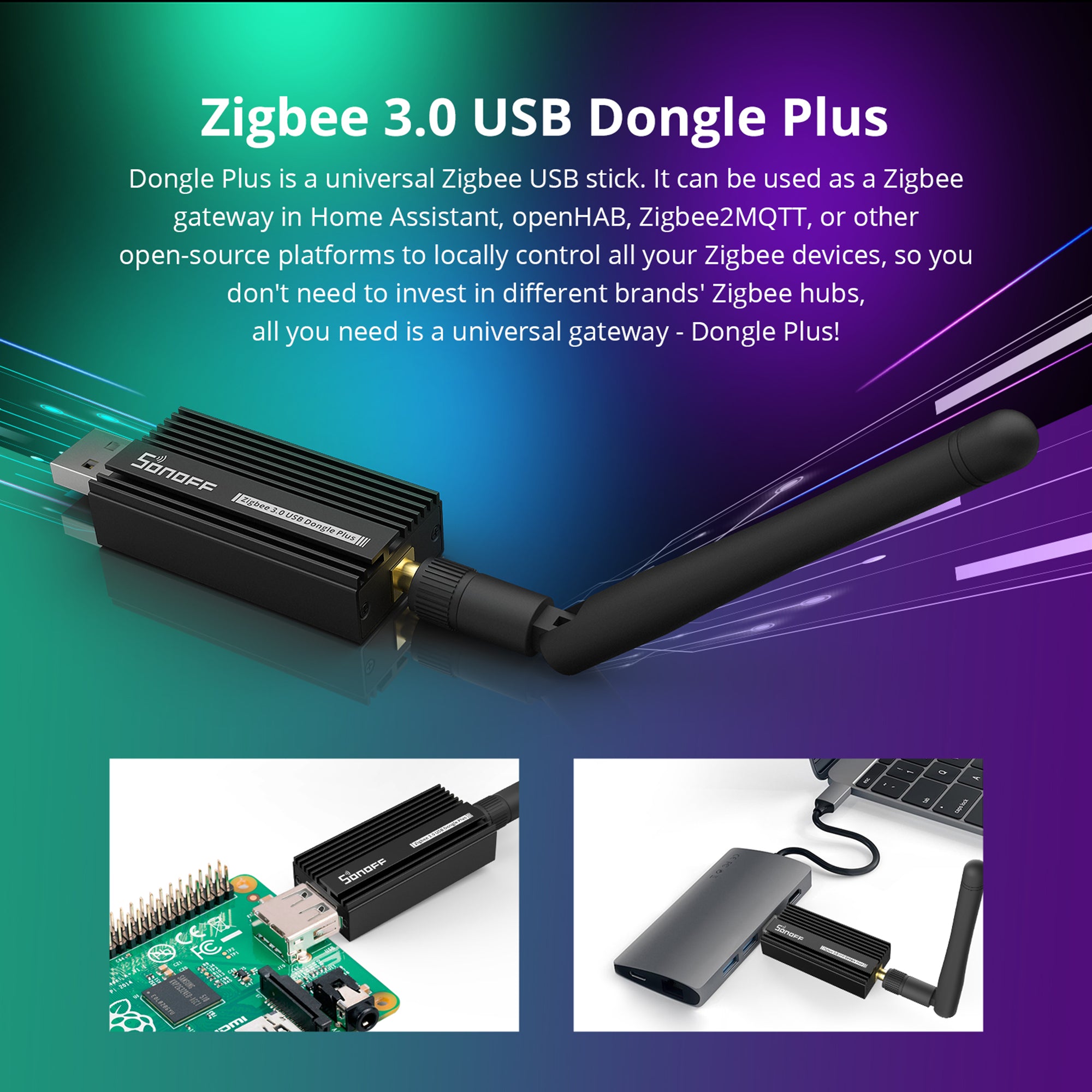

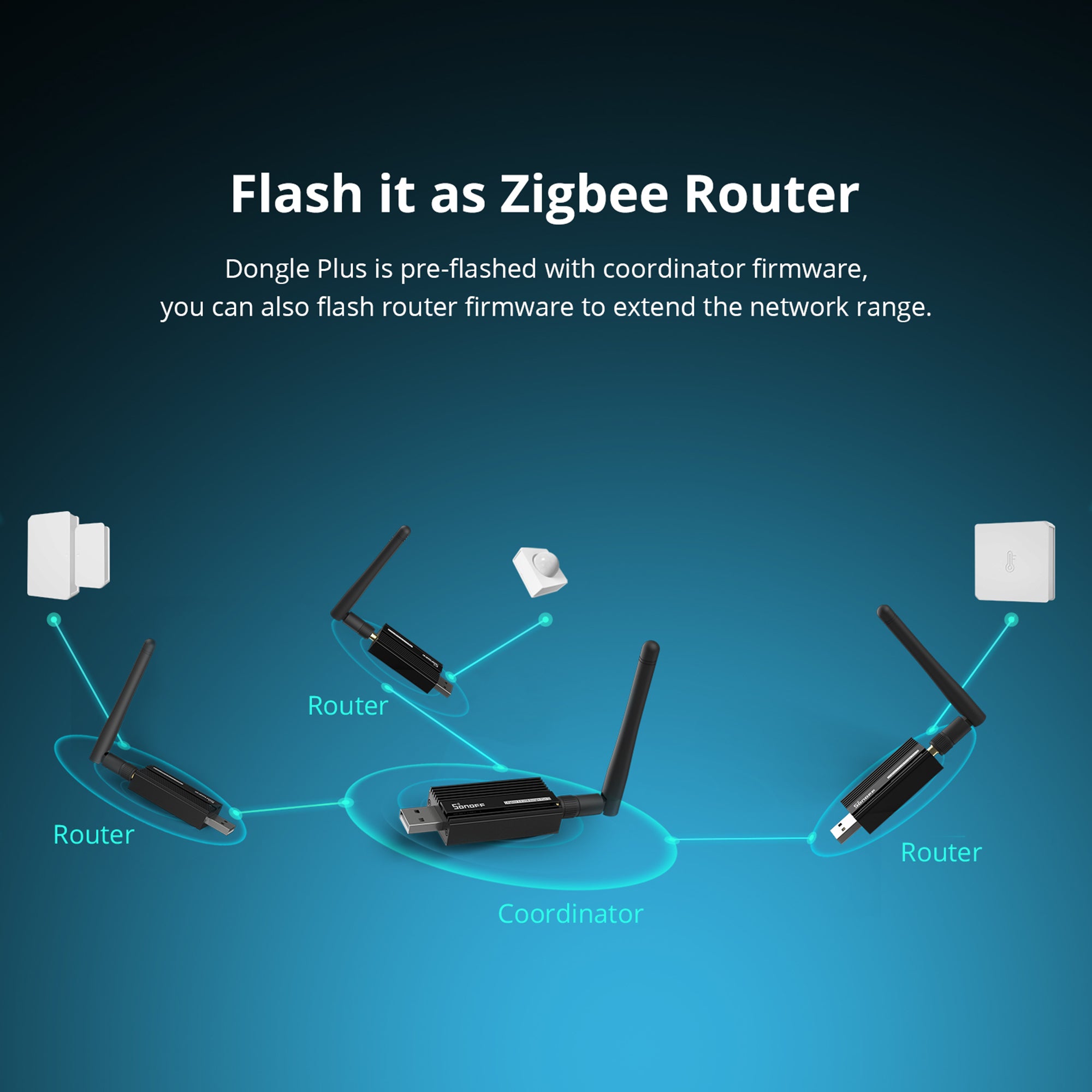

SONOFF Zigbee 3.0 USB Dongle Plus is pre-flashed with Zigbee coordinator firmware. Plug it into the computer/Raspberry Pi, you can use it as a Zigbee coordinator in smart home open source platforms such as Home Assistant, openHAB, etc. Also, you can reflash the firmware and use it as a router to extend the network range.

【Pre-Flashed for Immediate UseComes ready with Zigbee coordinator firmware (EZNet 6.10.3) pre-installed, allowing for immediate setup and integration without the need for an initial flashing process.

【High-Power Chipset with Extended RangePowered by the EFR32MG21 chipset and a high +20dBm output gain, providing a strong, reliable signal and improved wireless coverage for a more stable Zigbee network.

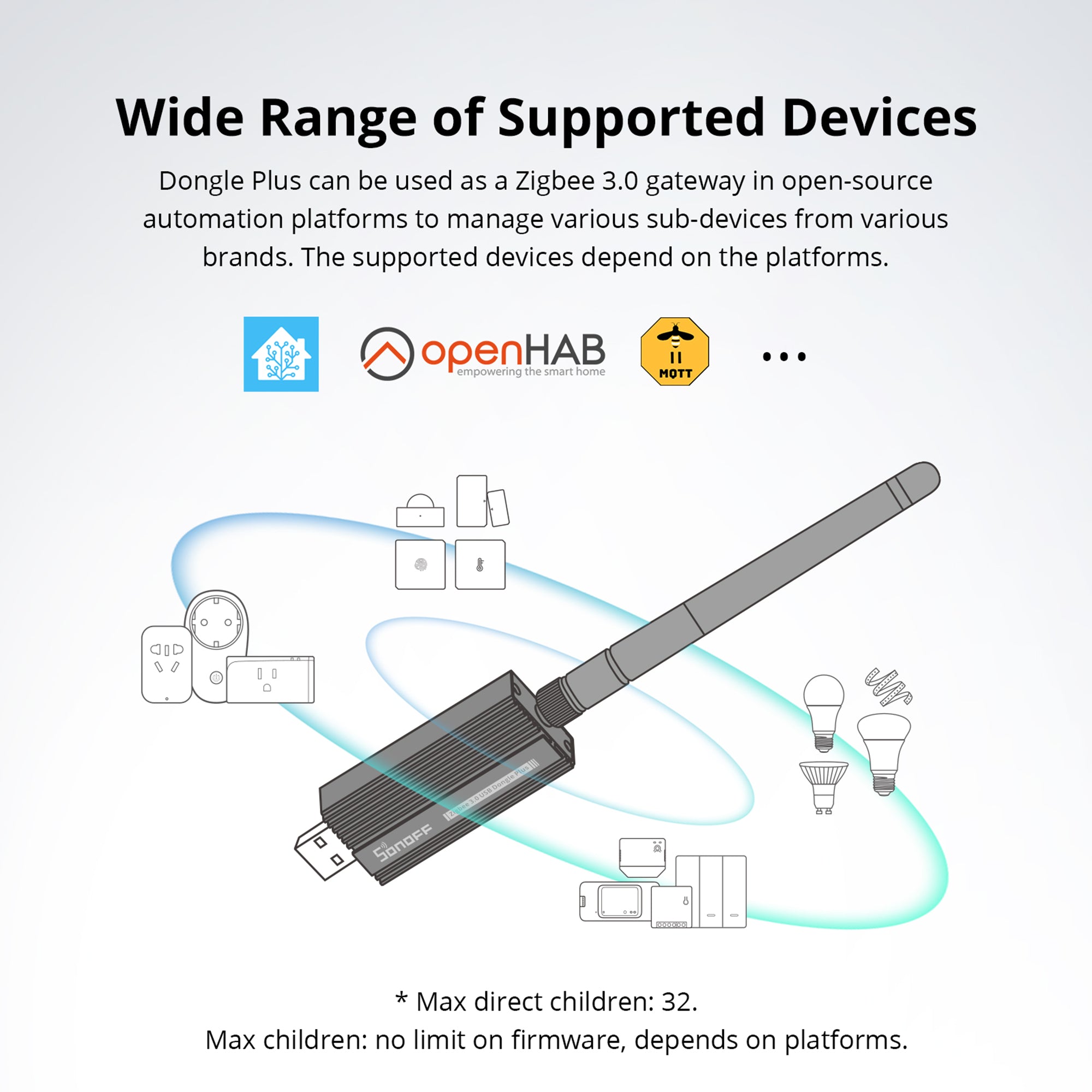

【Broad Smart Home Platform CompatibilityOffers wide support for popular open-source platforms such as Home Assistant, Zigbee2MQTT, and openHAB, ensuring easy integration into most existing smart home ecosystems.

【Shielded Aluminum HousingDurable aluminum enclosure helps minimize electromagnetic interference from nearby devices.

【Versatile and User-Friendly Firmware ManagementAllows for quick and easy firmware updates or changes to other device types (e.g., Zigbee2MQTT) in under a minute using the dedicated Dongle Flasher Web tool or Add-on, offering great flexibility.

Basic Information
Color Black
Casing Material Aluminum Alloy
Product Series DIY Smart Switch
Type DIY Universal Gateway
Input 5VDC 100mA Max
Stand-by Power Consumption 31mW
MCU EFR32MG21
Supported Platforms Linux, Windows, Raspbian, Ubuntu, macOS
Wireless standard
Zigbee Zigbee 3.0(IEEE 802.15.4)
Antenna External Antenna (Manual Installation)
Security Mode WPA/WPA2
Encryption Type AES-128
Working Enviroment
Applicable Place Indoor
Working Temperature –10°C ~ 40°C
Working Humidity 5%-95% RH, Non-condensing
Working Height Less than 2000m
Warranty - Certifications
Certification CE/FCC/RoHS

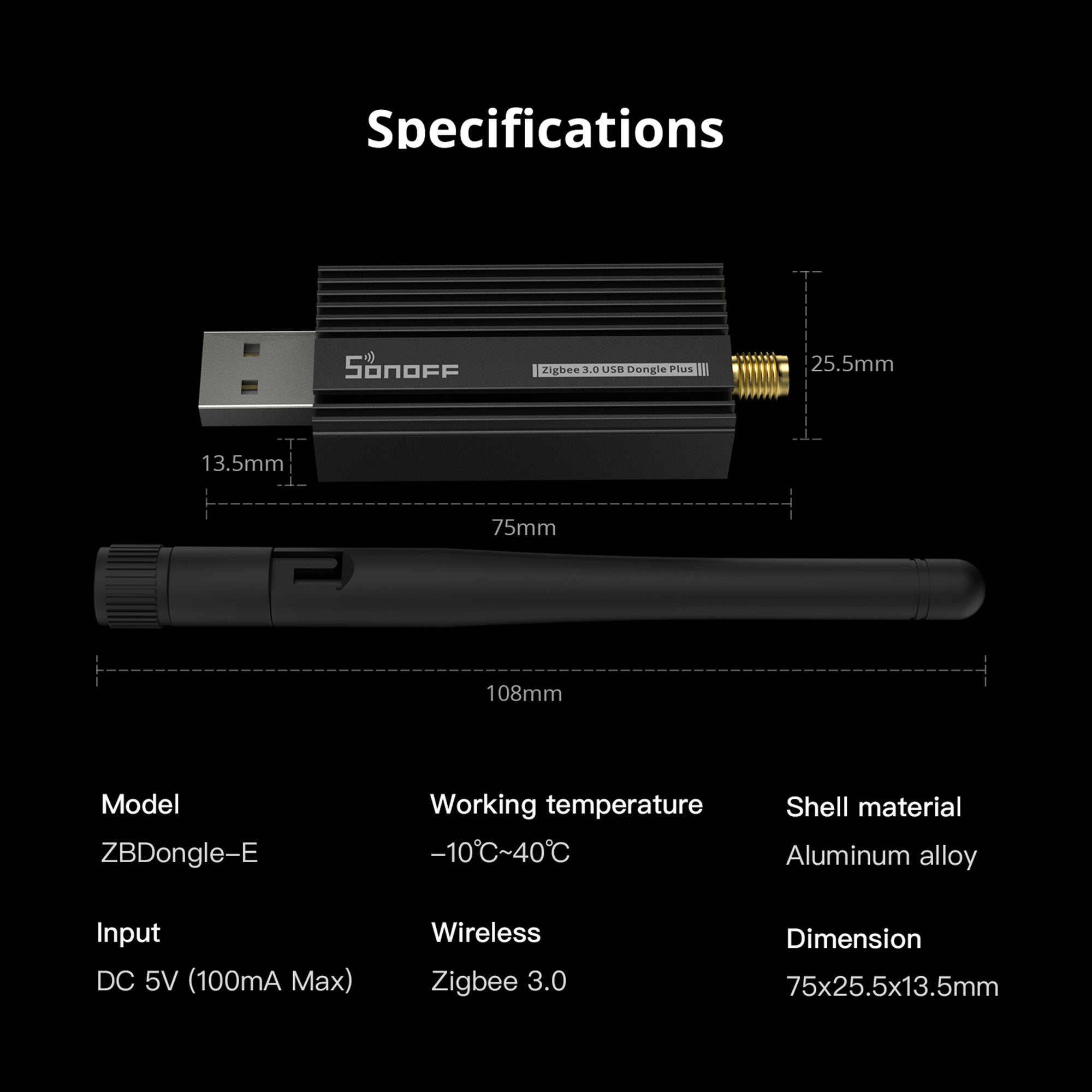

  • Dimensions: 75 x 25.5 x 13.5mm
  • Weight: 30g(With Antenna)

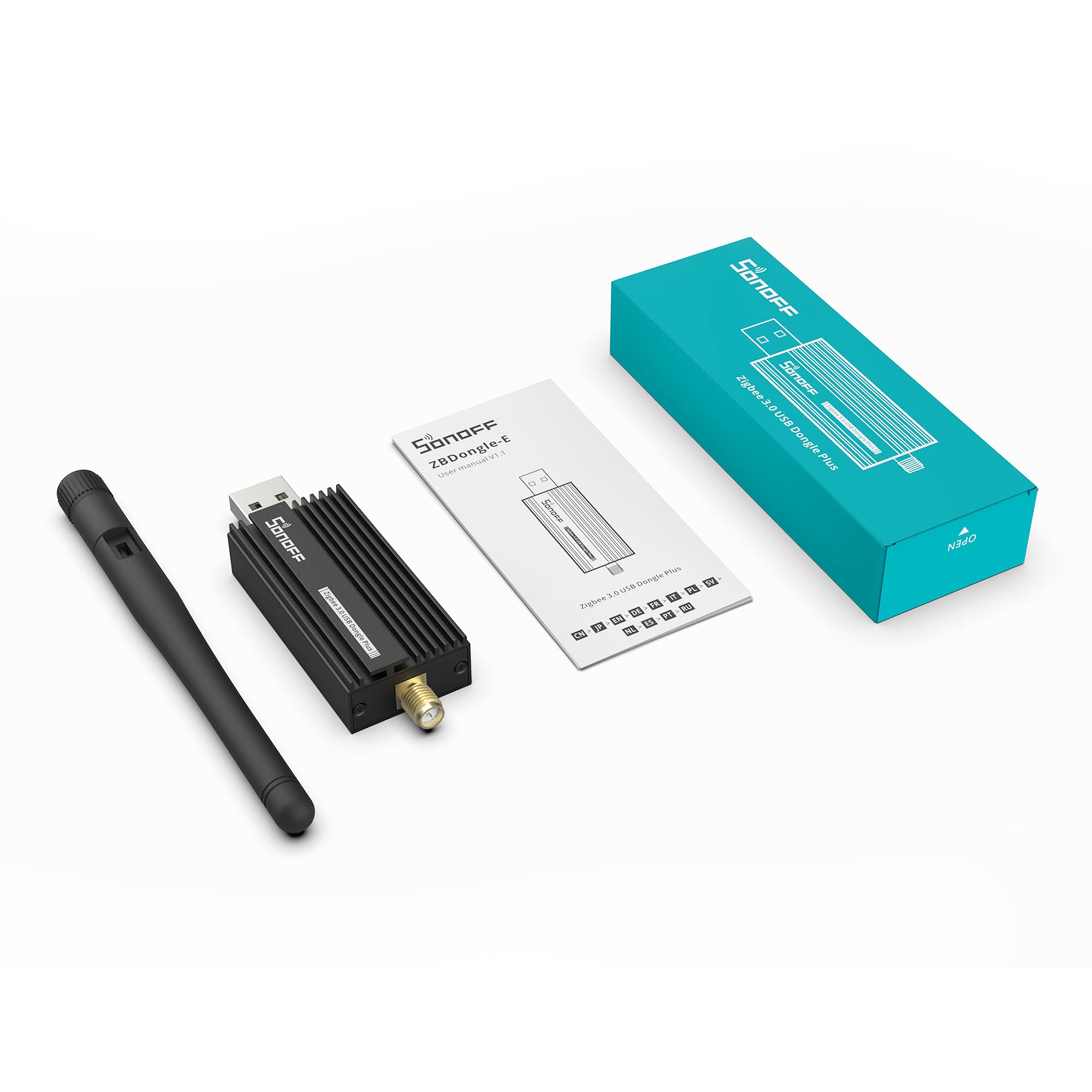

  • 1 x ZBDongle-E
  • 1 x Gain antenna
  • 1 x Quick guide
