Precio de venta$39.90 USD
SKU: 6920075743364
Model:Dongle-PMG24
Cantidad:

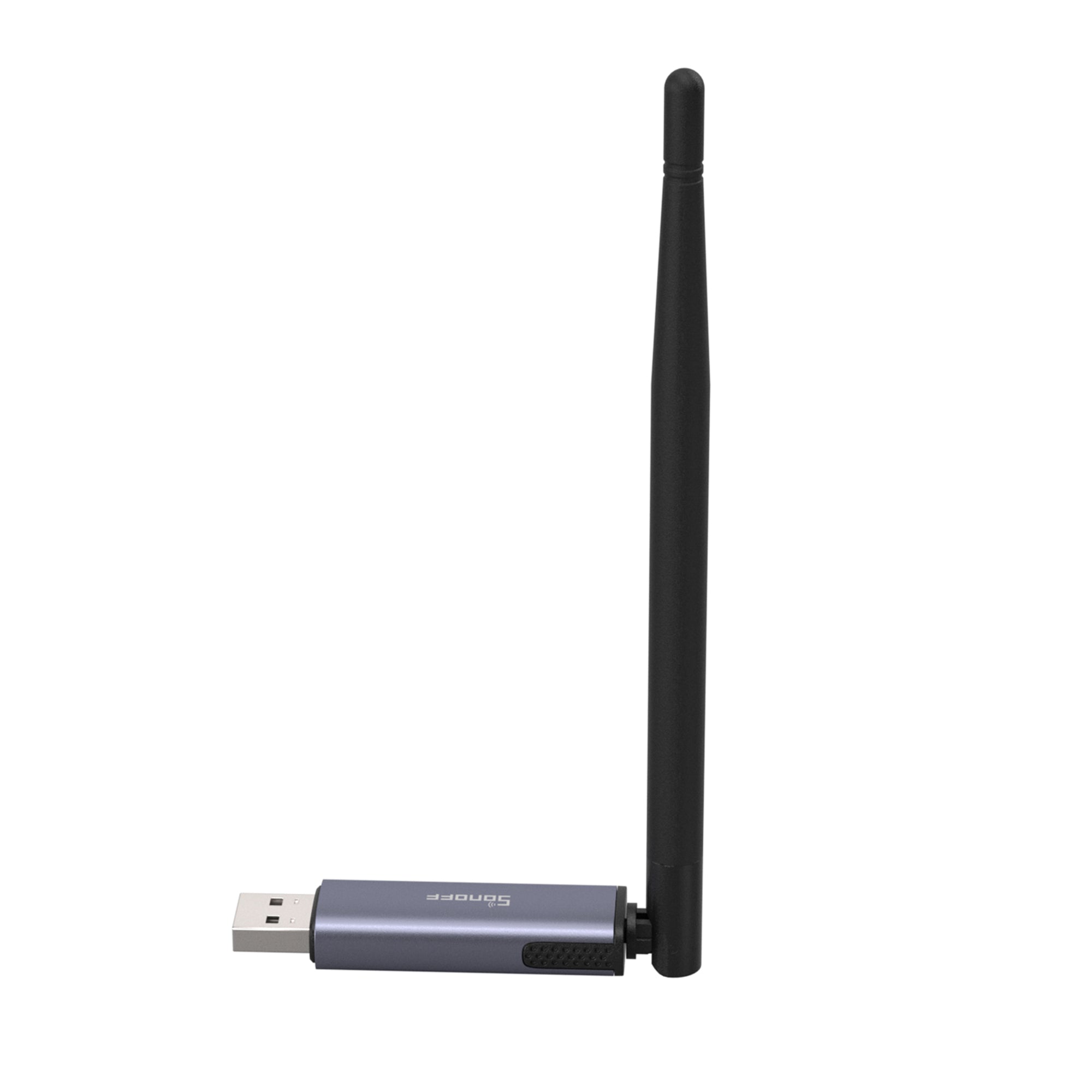

The SONOFF Dongle Plus MG24 is a high-performance Zigbee USB coordinator based on the EFR32MG24 chip, offering seamless compatibility with open-source platforms like Home Assistant and Zigbee2MQTT for reliable local smart home control.

【High-Performance EFR32MG24 ChipEquipped with the advanced EFR32MG24 microcontroller for faster automation processing and stable control of Zigbee sub-devices.

【Enhanced Antenna DesignFeatures a default 3dBi antenna gain, optimized up to 4.5dBi, ensuring stronger signal strength and extended coverage.

【Multi-Platform CompatibilitySeamlessly integrates with open-source platforms like Home Assistant, openHAB, and Zigbee2MQTT for local Zigbee device management.

【Versatile Firmware FlashingSupports quick and easy flashing of Zigbee Router, OpenThread RCP, or MultiPAN RCP firmware via the SONOFF Dongle Flasher tool.

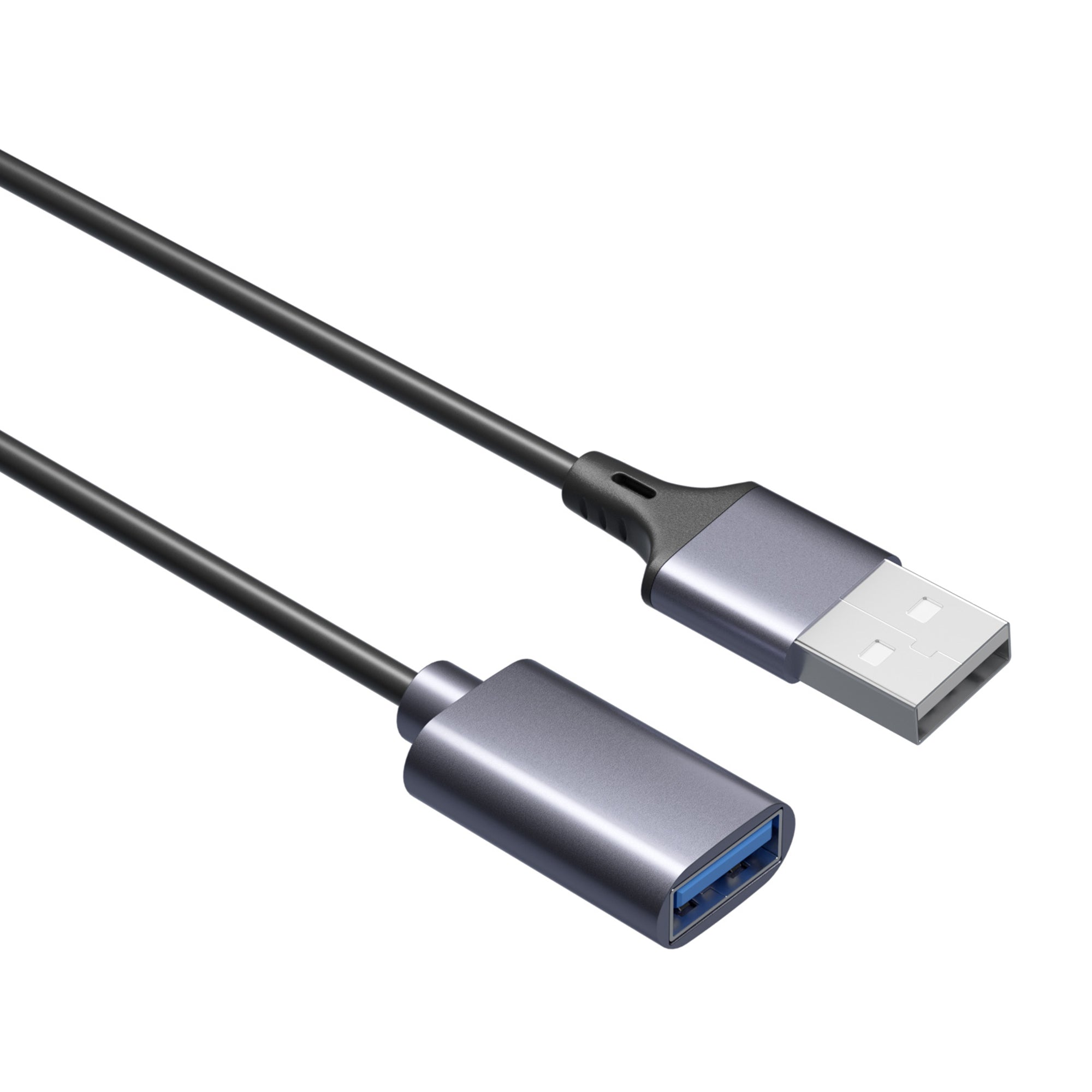

【Includes USB Extension CableComes with a USB extension cable to reduce electromagnetic interference and improve signal range by allowing flexible placement.

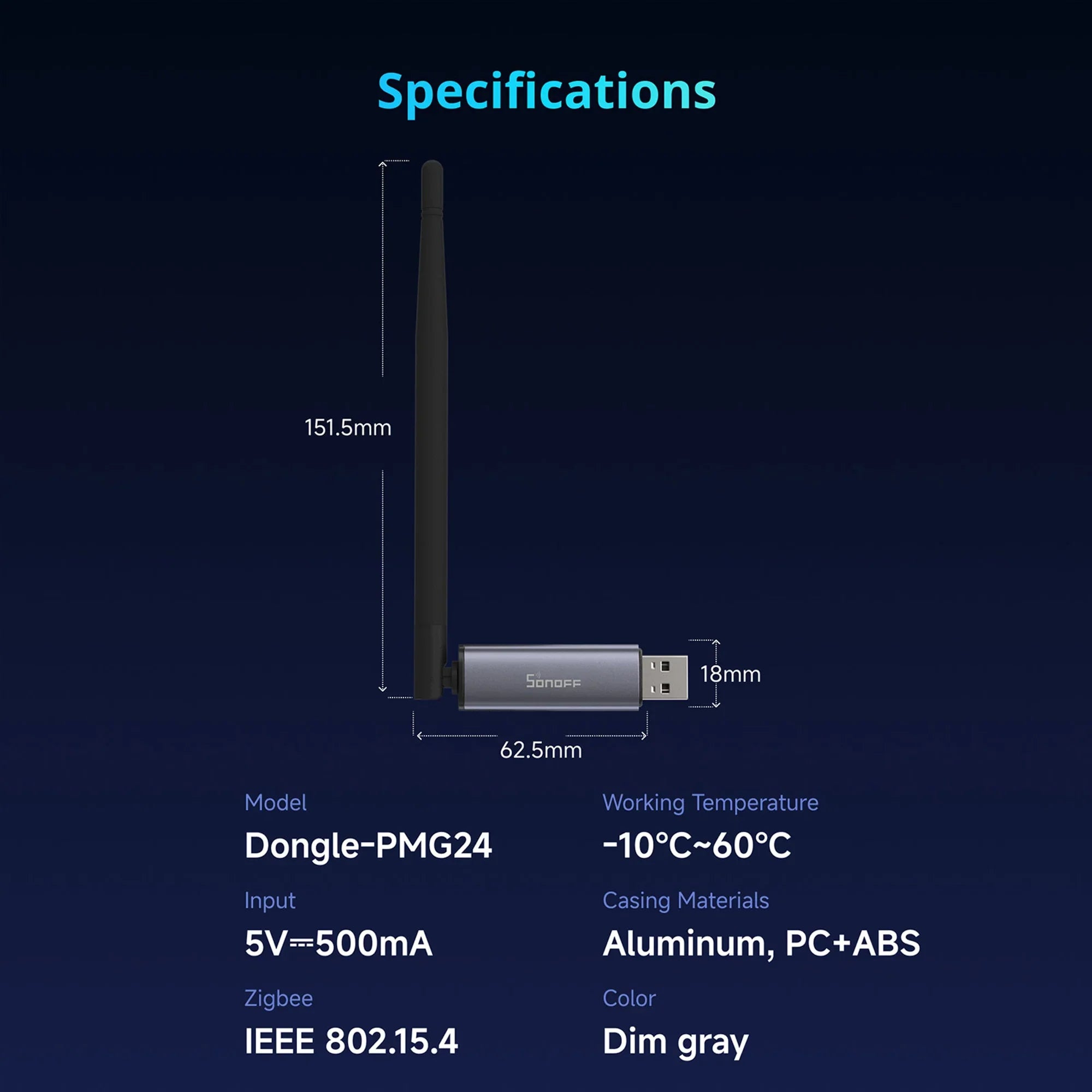

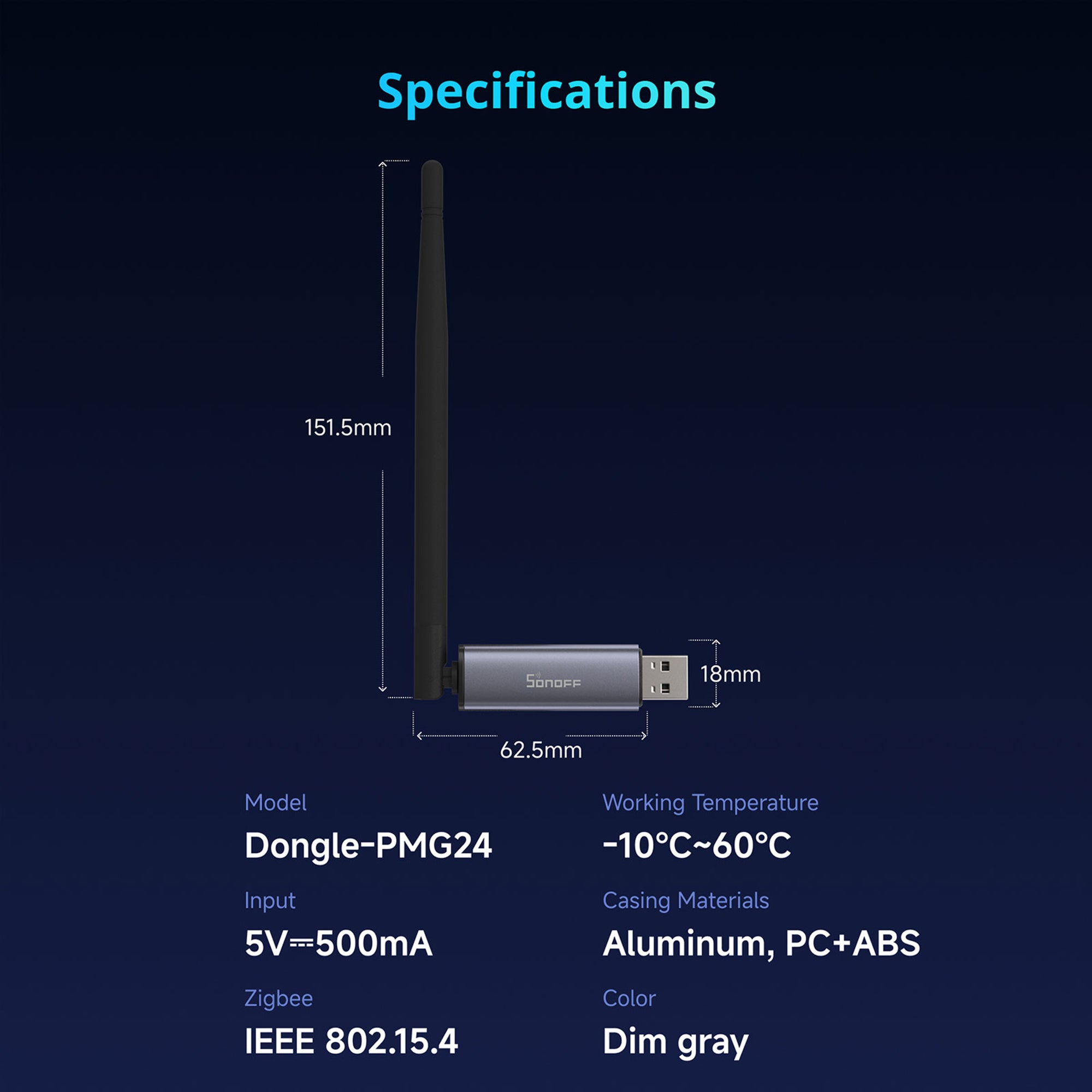

Basic Information
Color Dim Gray
Casing Material Aluminum, PC + ABS
Input 5V⎓500mA
Stand-by Power Consumption 40 mW
SoC EFR32MG24
Wireless Standard
RF Standard IEEE 820.15.4 | Zigbee 3.0
RF Frequency 2.4 GHz
Signal range 200m in Free Line of Sight
Signal Strength Max 20dBi + antenna gain 3dBi
Supported OS Windows, Ubuntu, Raspberry Pi OS | Raspbian, Docker
Working Enviroment
Applicable Place Indoor
Working Temperature –10°C ~ 60°C
Working Humidity 5%-95% RH
Warranty - Certifications
Certification CE/FCC/RoHS
  • Dimensions: 214 x 18 x 10.5mm
  • Weight: 19.1g

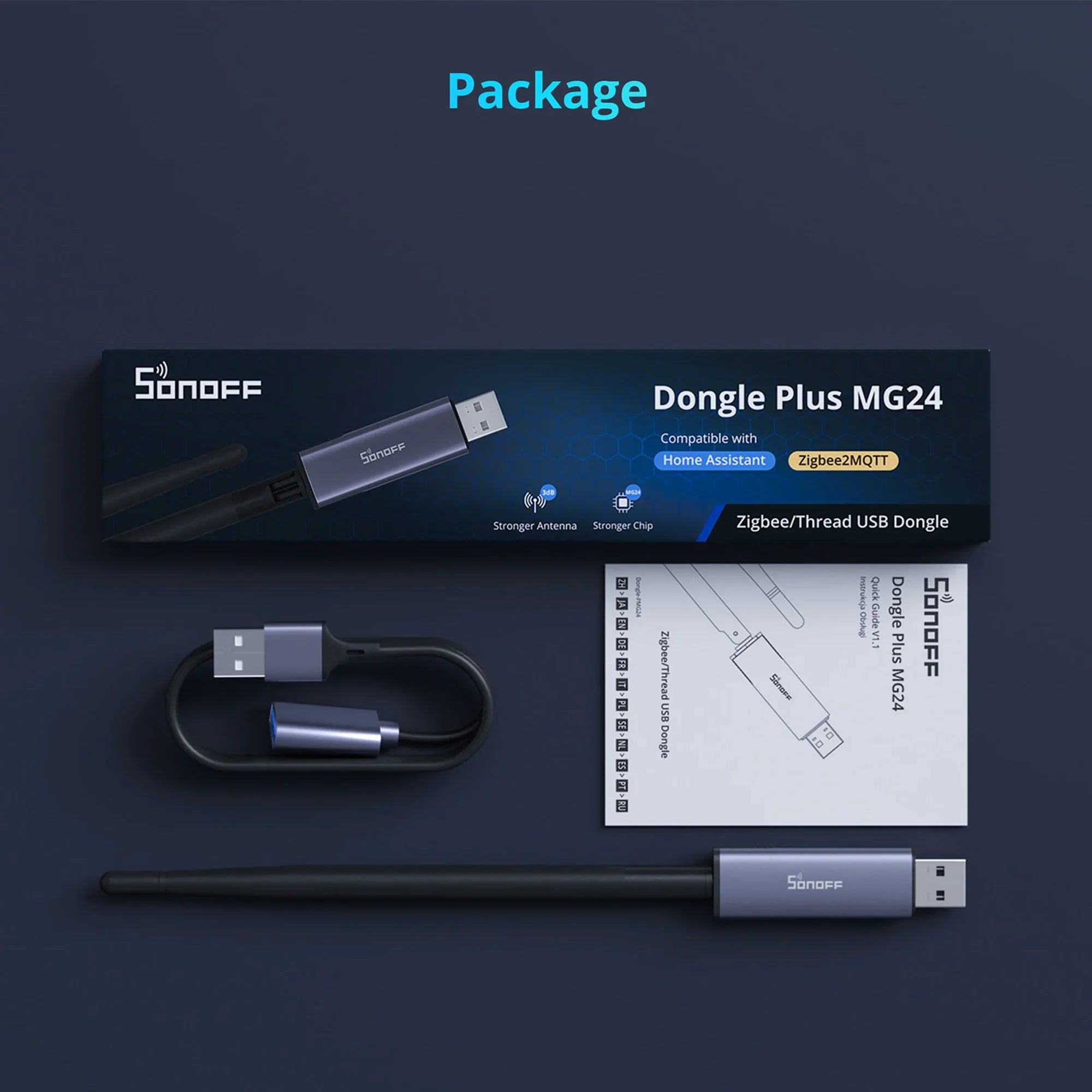

  • 1 x Dongle-PMG24
  • 1 x Quick guide
