$49.90 USD
SKU: 6920075743227
Model:Dongle-M
Cantidad:
Description

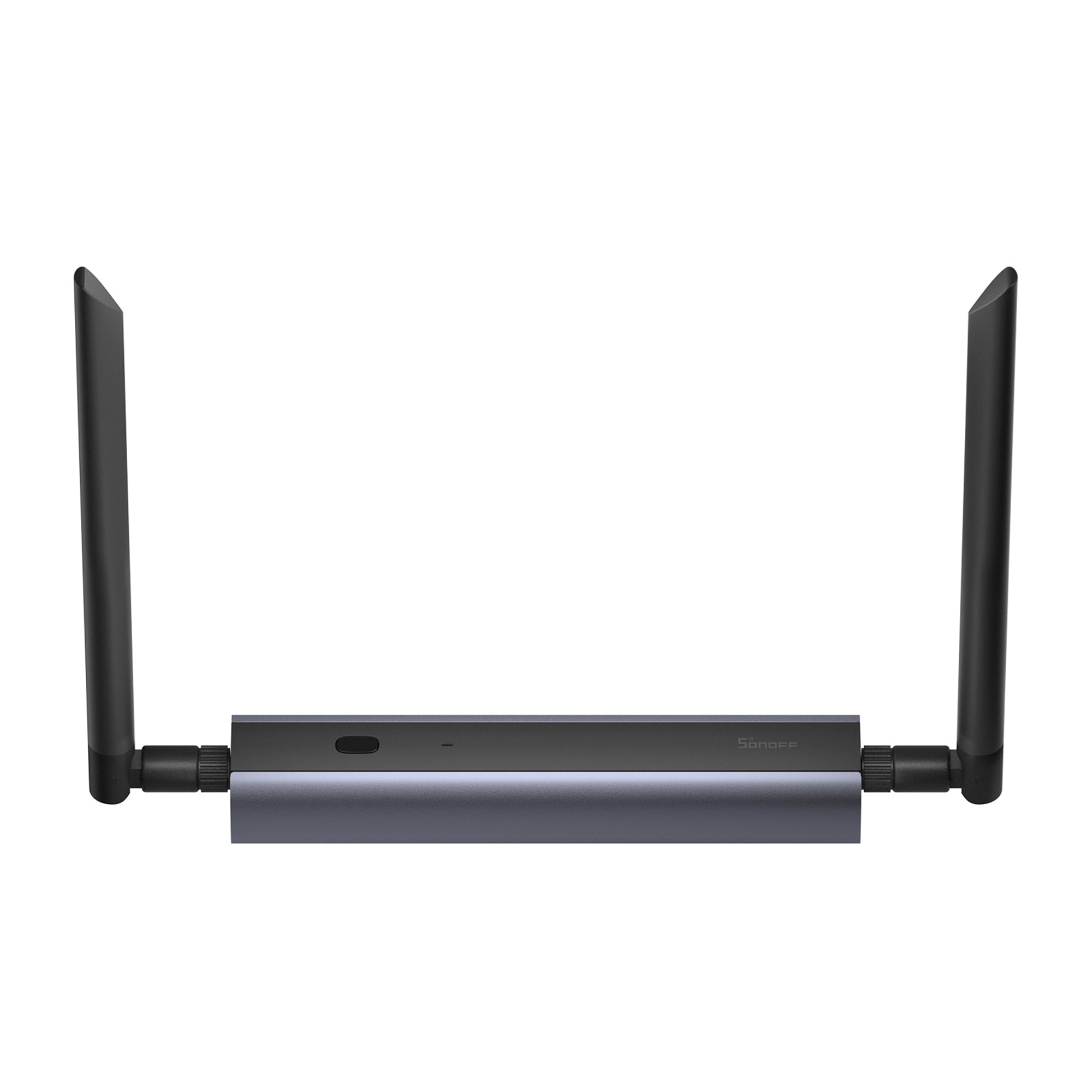

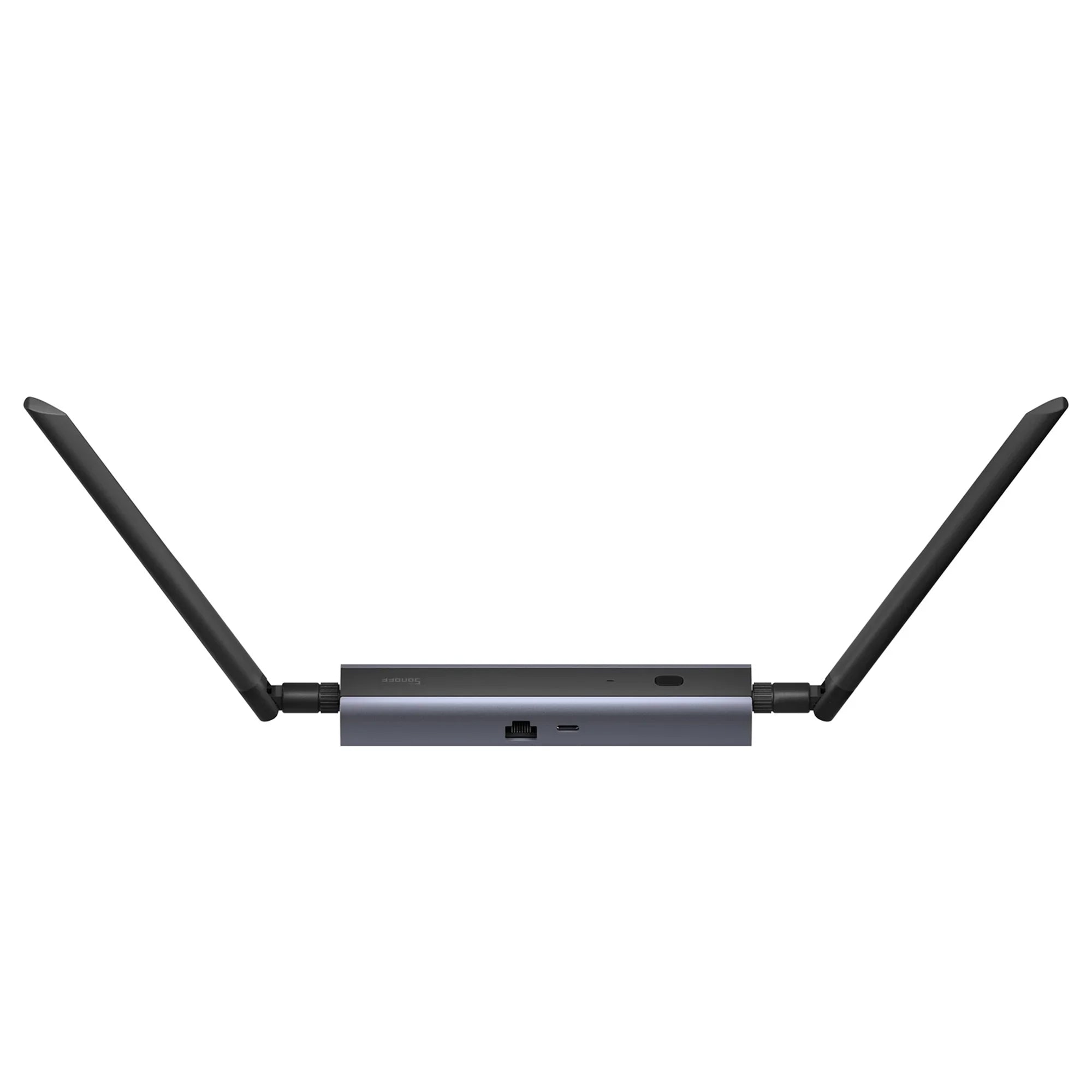

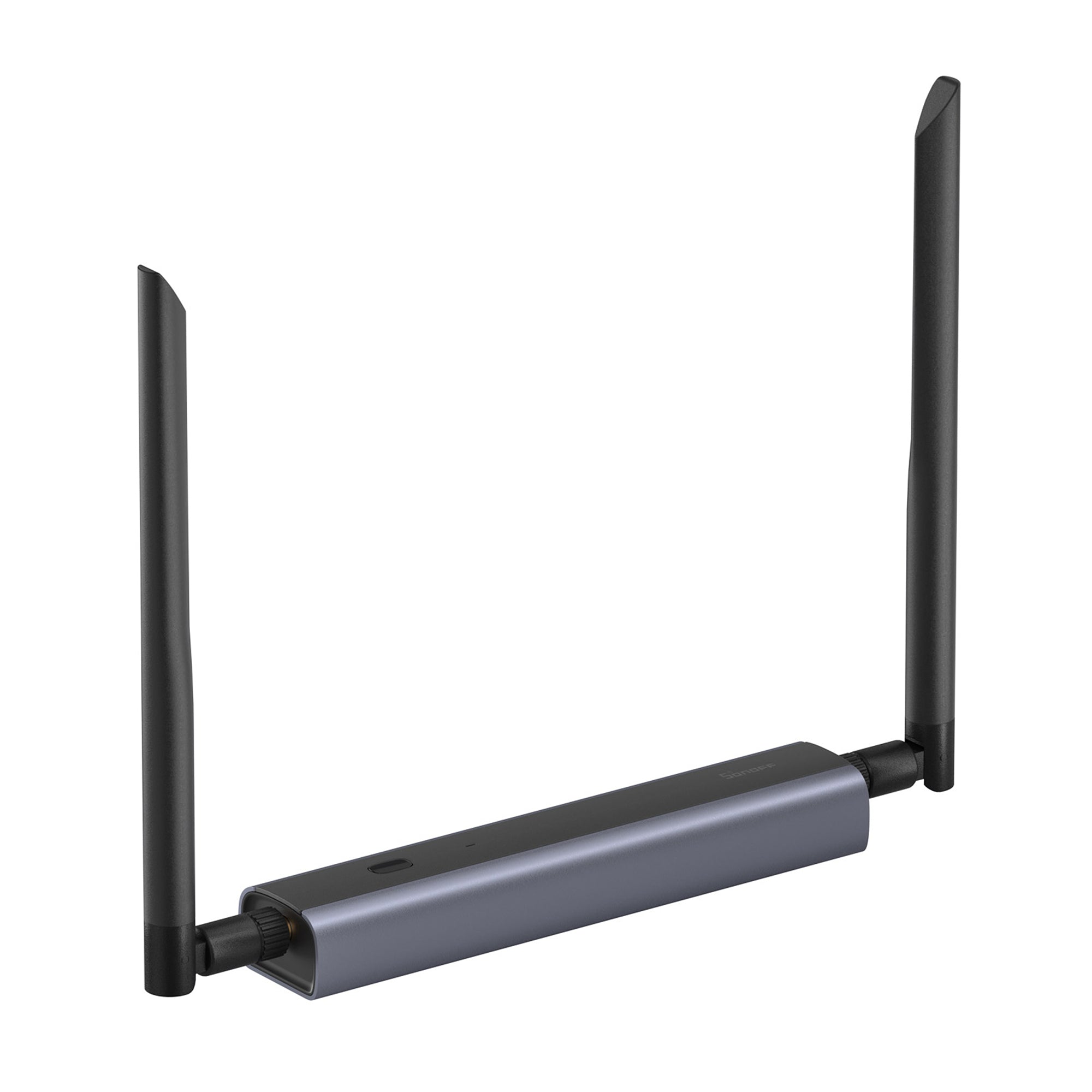

The SONOFF Dongle Max is a high-performance Zigbee gateway powered by dual chips. It features a built-in web console for easy management and supports Ethernet (PoE), Wi-Fi, and USB. With dual 5dBi antennas and durable aluminum housing, it ensures reliable, whole-home connectivity for open-source platforms.

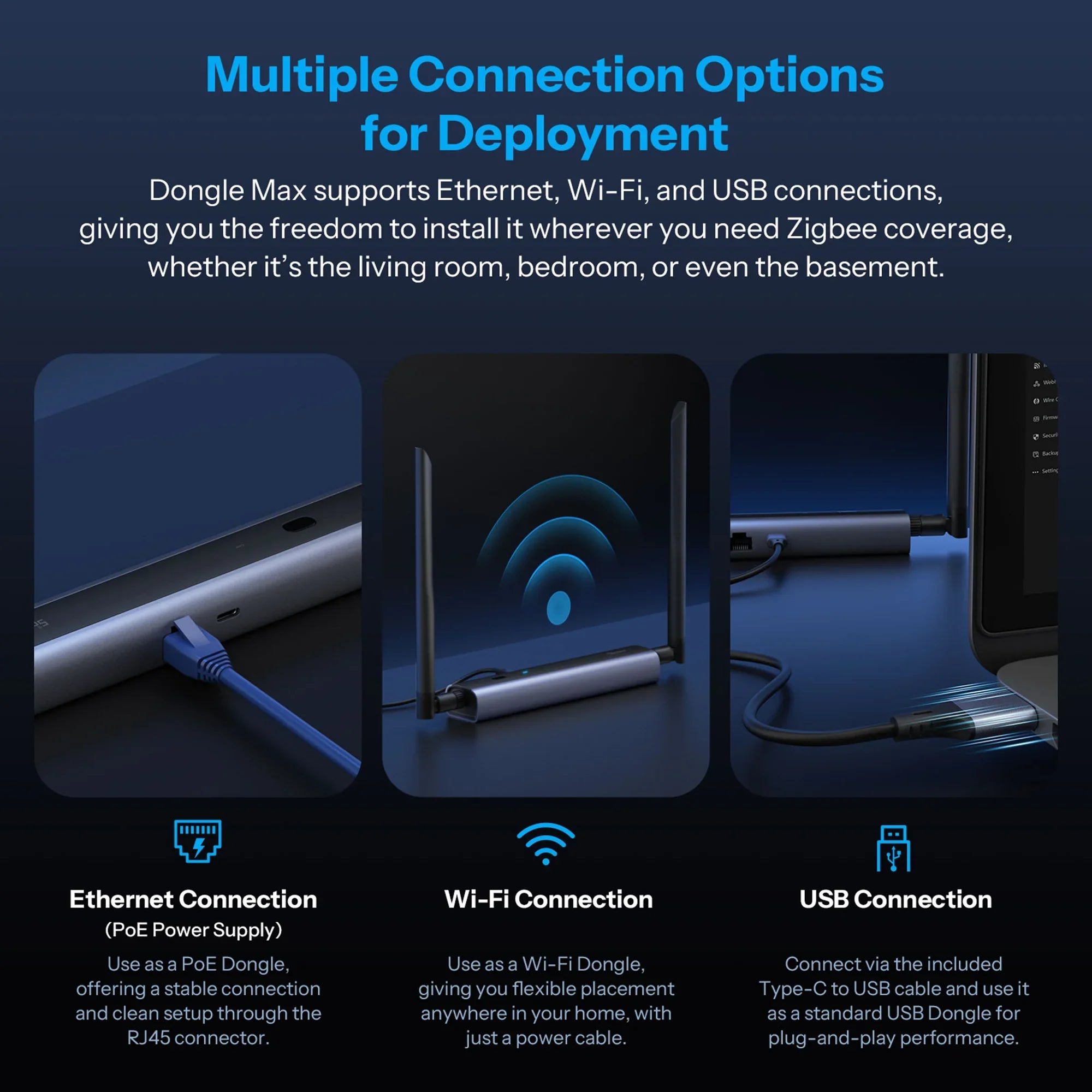

【Versatile Connectivity】: Offers flexible deployment options with support for Ethernet (PoE), Wi-Fi, and USB connections to ensure stable operation in any network environment.

【Dual-Chip High Performance】: Powered by the EFR32MG24 and ESP32D0WDR2 chipsets, providing robust processing capabilities for seamless Zigbee coordination and future expansion.

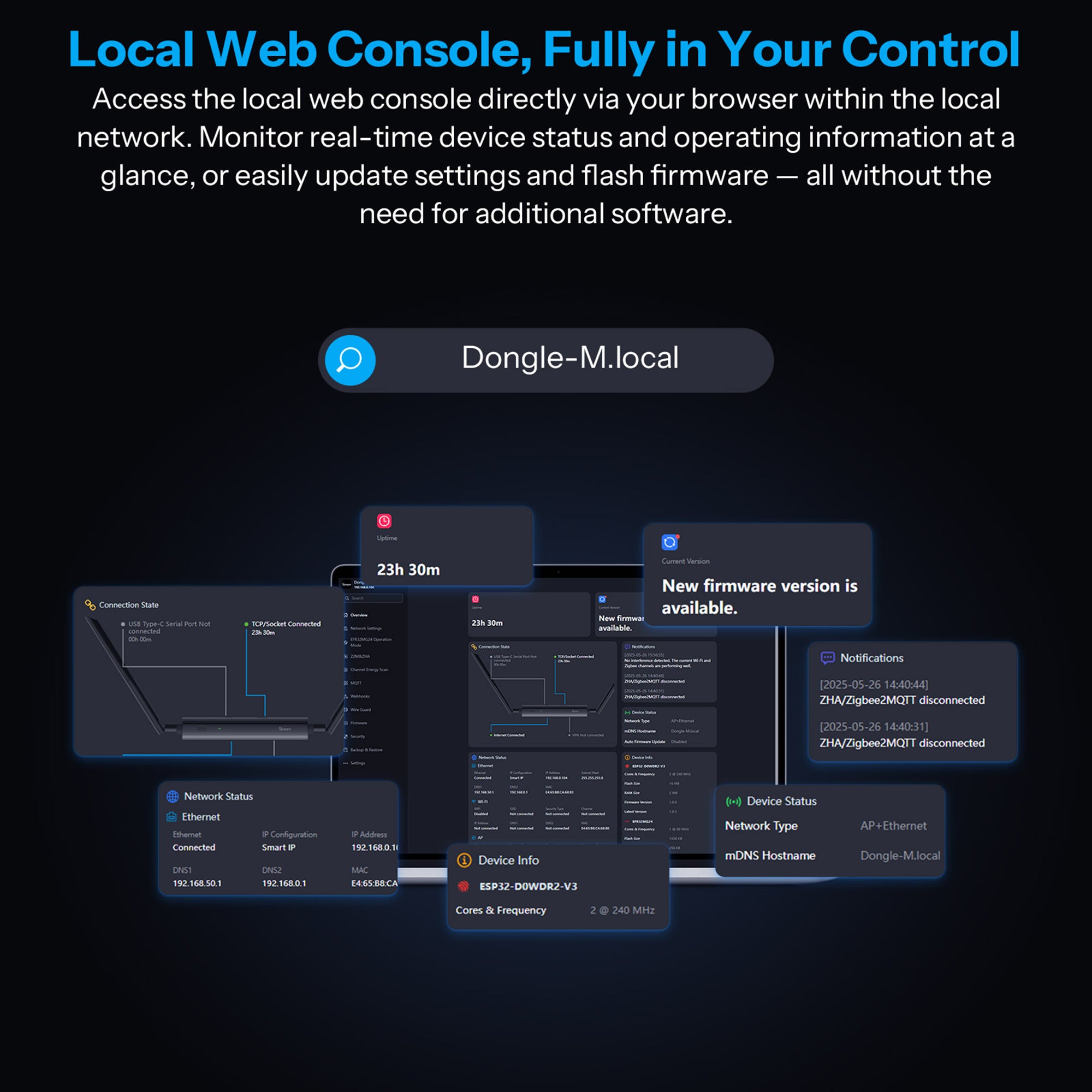

【Built-in Web Management】: Features an intuitive web console for easy monitoring, configuration, and troubleshooting without needing complex command lines.

【Premium Build & Signal】: Equipped with dual 5dBi adjustable antennas for 360° coverage and a durable, certified aluminum housing for long-term reliability.

【Simple Firmware Management】: Enables hassle-free firmware switching and updates directly via the web interface, supporting Zigbee coordinator, router, or Thread RCP modes.

Specifications
Basic Information
Color Dim Gray
Casing Material Aluminum, PC + ABS
Input 5V⎓1A for Type C | 48V⎓ 0.25A for PoE Port
SoC EFR32MG24 + ESP32D0WDR2
Wireless Standard
Connections Zigbee 3.0, Wi-Fi IEEE 802.11b/g/n 2.4GHz
Network Interface Type RJ45
Working Enviroment
Applicable Place Indoor
Working Temperature –10°C ~ 60°C
Working Humidity 5%-95% RH, Non-condensing
Working Height Less than 2000m
Warranty - Certifications
Certification CE/FCC/RoHS
Weight & Dimensions
  • Dimensions: 169 x 32.5 x 22mm
  • Weight: 102g
Product Details
  • 1 x Dongle-M
  • 1 x Quick guide
