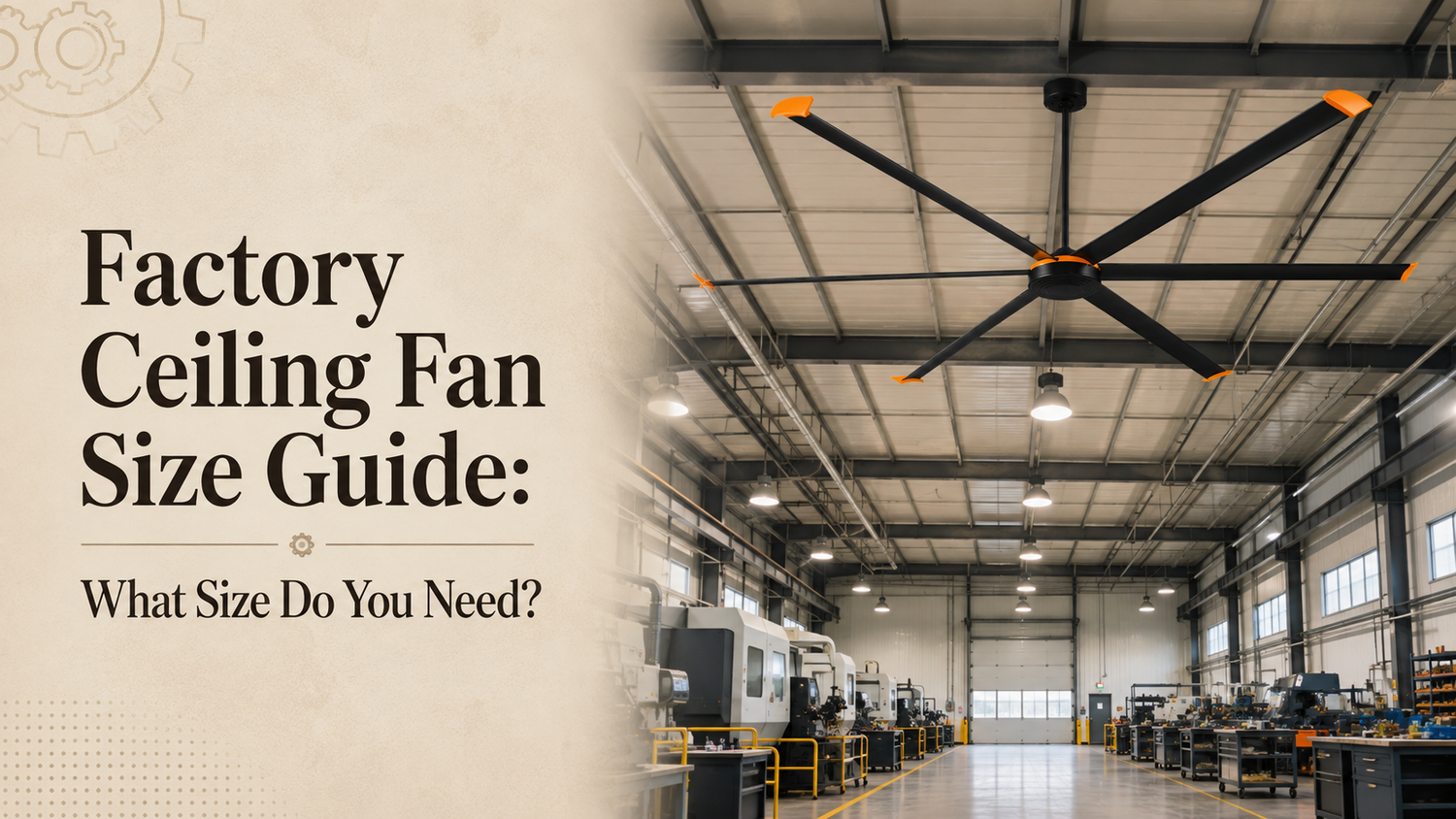

Choosing the right factory ceiling fan is mainly about airflow. Blade diameter matters, but it should not be the only number you use. CFM, floor area, ceiling height, building volume, fan placement, and overhead obstructions all affect how well an industrial ceiling fan performs.
Parrot Uncle is a U.S.-based home brand best known for large ceiling fans, and Hvls fans solutions that improve comfort and elevate the look of everyday spaces.For a factory or warehouse, the better question is not simply, "What size fan do I need?" It is, "How much air needs to move, and where does that airflow need to reach?"
Start With What You Need the Fan to Do
Factory ceiling fans are usually installed for air circulation, worker comfort, or air mixing in tall spaces.
These goals are related, but they are not exactly the same.
For worker comfort, air speed near people is important. Moving air across the body can improve comfort even though the fan itself does not lower the actual room temperature. Ceiling fans create a wind chill effect by moving air rather than producing cold air.
For air mixing, building volume becomes more important. Tall factories can develop temperature differences between the occupied zone and the air near the roof. Large ceiling fans can help mix this air through the building. Industry guidance commonly evaluates destratification according to how many times the volume of air in the space is mixed each hour.
Understanding your main goal makes every later sizing decision easier.
What Does CFM Mean for a Factory Ceiling Fan?
CFM means cubic feet per minute. It tells you how much air a ceiling fan moves under its stated test conditions.
For industrial spaces, CFM is one of the most useful specifications to compare.
A fan that produces 6,000 CFM is moving a very different amount of air from a fan capable of 30,000 CFM. However, higher CFM does not automatically make a fan better.
Airflow has to reach the area where it is useful.
A high CFM fan installed above an empty storage zone may do less for employees than several properly positioned fans above production lines.
This is why CFM and fan placement should always be considered together.
How Much CFM Does a Factory Need?
There is no universal CFM per square foot number that works for every factory.
Ceiling height is one reason.
Consider two factories that are both 10,000 square feet. One has a 12 foot ceiling and the other has a 25 foot ceiling. Their floor areas are identical, but the taller building contains much more air.
For air mixing, you can begin with building volume:
Room Volume = Length x Width x Ceiling Height
A simple air turnover calculation is:
Required CFM = Room Volume x Air Turnovers Per Hour / 60
For example, imagine a 100 foot by 100 foot factory area with a 20 foot ceiling.
100 x 100 x 20 = 200,000 cubic feet
If a design target called for two air turnovers per hour:
200,000 x 2 / 60 = about 6,667 CFM
Industry guidance uses this type of calculation for destratification and provides two air turnovers per hour as an example specification. It also notes that destratification is often evaluated at partial fan speed to avoid creating an unwanted draft at occupant level.
This calculation should not be treated as a universal cooling formula. Worker comfort depends on air speed at the occupied level, not simply the total air volume moved per hour.
How Much Space Can One Industrial Ceiling Fan Cover?
There is no dependable rule such as one industrial fan for every 2,000 or 5,000 square feet.
Coverage changes with fan diameter, CFM, ceiling height, mounting position, obstacles, and the air speed you want at floor level.
For early planning, one industry specification uses an occupied floor area with a diameter about six times the diameter of the large ceiling fan while targeting an average air speed of 125 feet per minute. More detailed projects can use airflow modeling to account for the real dimensions and obstructions in a building.
Using that six diameter concept only as a rough planning tool gives the following approximate areas.
| Fan Diameter | Approximate Coverage Diameter | Approximate Circular Area |
|---|---|---|
| 8 ft | 48 ft | 1,810 sq ft |
| 10 ft | 60 ft | 2,830 sq ft |
| 12 ft | 72 ft | 4,070 sq ft |
| 16 ft | 96 ft | 7,240 sq ft |
| 20 ft | 120 ft | 11,310 sq ft |
| 24 ft | 144 ft | 16,290 sq ft |
These figures are not guaranteed fan coverage ratings.
An open factory may allow air to spread relatively freely. The same fan installed in a warehouse filled with tall racks and equipment may serve a much smaller practical work zone.
Floor Area Is Only the First Measurement
Square footage is useful, but it cannot describe an industrial space by itself.
Before choosing a factory ceiling fan, look at three basic conditions.
First, measure the length, width, and ceiling height.
Second, identify the occupied work areas. Production lines, packing stations, assembly zones, loading areas, and work benches may need more airflow than storage areas.
Third, map the objects that can interfere with installation or airflow. These may include roof beams, pallet racks, lights, ducts, cranes, sprinklers, heaters, mezzanines, and production equipment.
Two buildings with the same square footage can need completely different fan layouts because of these differences.
One Large Industrial Fan or Several Smaller Fans?
One large fan is not always better than multiple fans.
Large diameter fans make the most sense when they have enough open space to develop broad airflow.
If your factory has one large open production area, a large HVLS style ceiling fan may be able to serve much of that zone.
A long or divided factory is different.
Imagine a building that is 200 feet long but only 50 feet wide. A single fan near the middle may leave the ends of the building with much less useful air movement.
Several fans positioned along the active work area may create more even coverage.
Tall racks can create a similar problem. Airflow does not simply pass through every obstruction. A warehouse with several separate aisles or enclosed production zones may need a distributed fan layout.
Instead of asking how many fans the entire building needs, divide the factory into airflow zones.
Ceiling Height Changes the Sizing Decision
Industrial buildings often have much higher ceilings than homes, offices, or retail spaces.
This affects fan selection because the fan may be located much farther from workers.
A fan installed at 12 feet and the same fan installed much higher may not create the same air speed at occupant level.
This is why industrial fan selection should consider blade span, CFM, ceiling height, and mounting position together.
Do not choose a downrod or mounting height only by appearance. Follow the installation requirements for the specific fan and make sure the ceiling structure is suitable for the load.
Safety also comes first. U.S. workplace requirements state that fan blades located within 7 feet of the floor or working level must be guarded.
CFM Is More Important Than Blade Span Alone
A larger blade span can help a fan influence a wider area, but diameter alone cannot tell you how much air the fan moves.
Motor design, blade shape, blade pitch, speed, and overall engineering also affect performance.
Two 10 foot ceiling fans can have very different CFM ratings.
This is why industrial buyers should compare specifications instead of assuming that equal diameters mean equal performance.
| Specification | Why It Matters |
|---|---|
| CFM | Shows published airflow volume |
| Blade span | Shows the physical size of the fan |
| CFM per watt | Helps compare airflow efficiency |
| Speed settings | Allows airflow to be adjusted |
| Reversible operation | Provides additional seasonal air movement options |
| Mounting requirements | Helps determine whether the fan fits the building |
| Location rating | Indicates the environment the fan is designed for |
For large diameter ceiling fans, federal testing rules use standardized methods for representing airflow and energy performance.
Why CFM per Watt Is Worth Checking
Factories may run ceiling fans for many hours at a time.
That makes efficiency worth considering.
CFM per watt compares airflow with electrical input. In simple terms, it shows how much airflow is produced for the amount of power used at the stated operating condition.
A higher CFM per watt figure can indicate better airflow efficiency, but it should never be considered without total CFM.
A very efficient fan is still the wrong choice if it does not move enough air for the space.
Start with the airflow requirement, then compare efficiency among fans that can realistically meet that requirement.
Do Not Expect a Ceiling Fan to Replace Ventilation or Air Conditioning
An industrial ceiling fan circulates air.
It does not automatically lower the air temperature in the building. Moving air can make workers feel more comfortable because of increased air movement across the body.
It also should not be confused with an exhaust or ventilation system.
If a factory needs to remove smoke, dust, fumes, vapors, process heat, or other contaminants, those conditions may require dedicated ventilation equipment.
A factory ceiling fan can support an overall comfort and air circulation plan, but it does not perform every job an HVAC or industrial ventilation system performs.
Plan Around Obstructions
Large factory ceiling fans need open space around the blades.
Before choosing a fan, look above the work area as carefully as you look at the floor.
Lighting fixtures, roof trusses, sprinklers, ducts, heaters, cranes, cables, and storage systems can all affect where a fan can be installed.
Sprinkler systems deserve particular attention in buildings using large diameter fans. Industry guidance identifies requirements related to large fan placement around sprinklers, vertical clearance, and fan shutdown when sprinkler systems activate.
For a complex factory or warehouse, installation should be coordinated with the building structure, electrical system, fire protection system, and manufacturer instructions.
A Practical Example for a 12,000 Square Foot Factory
Suppose you have a 12,000 square foot factory.
It may be tempting to search for a fan advertised for 12,000 square feet and stop there.
A better approach is to break the space into actual working zones.
If most employees work in a central 4,000 square foot production area and the rest of the building is used for storage, the production area may deserve the strongest airflow.
If employees work throughout the full 12,000 square feet, multiple fan zones may make more sense.
Now consider ceiling height.
A 12,000 square foot factory with a 15 foot ceiling contains about 180,000 cubic feet of space.
The same floor area with a 25 foot ceiling contains about 300,000 cubic feet.
That large difference in volume is one reason square footage alone cannot determine the correct factory ceiling fan.
What to Look for Before Buying
From a Parrot Uncle product selection perspective, buyers should begin with airflow needs before comparing appearance or blade diameter.
Look at CFM first, then ask whether the fan can serve the intended work zone.
Next, compare the available ceiling area and mounting height.
Finally, check controls and efficiency. Multiple speeds are useful in industrial spaces because airflow requirements can change throughout the day or between seasons.
A factory that is comfortable at maximum speed in July may need much less airflow in October.
The right fan gives you enough performance without forcing you to operate at one setting all year.
84 Inch Soft Brass Solid Wood Blades Large Ceiling Fan
The 84 Inch Soft Brass Solid Wood Blades Large Ceiling Fan is designed as a large ceiling fan for spaces that need more airflow than a typical residential fan but may not require an extra large industrial installation. Current specifications list an 84 inch blade span, three solid wood blades, a 35 watt reversible DC motor, six speeds, and 6,621.97 CFM of airflow. The listed airflow efficiency is 243 CFM per watt, and the product is identified for dry locations including warehouses, factories, and gymnasiums.
For factory planning, its most useful feature is not simply the 84 inch diameter. The 6,621.97 CFM rating gives buyers a better way to compare it with the airflow requirement of a specific work area. A fan in this range may make sense for a workshop, production zone, or section of a larger industrial building where a much wider fan would be difficult to install. The model also includes remote control, six speeds, timer and memory functions, reversible operation, and lighted and non-lighted versions.
120 Inch Black Industrial Extra Large Ceiling Fan
The 120 Inch Isaac HVLS Fan Black Industrial Extra Large Ceiling Fan with Remote Control is aimed at larger industrial spaces where higher airflow is the main priority. Current specifications list a 120 inch blade span, six aluminum blades, a 35 watt DC motor, six speeds, reversible operation, and airflow up to 37,000 CFM. Its listed airflow efficiency is 278.84 CFM per watt, and the model is intended for dry locations such as factories, warehouses, and gymnasiums.
For an open factory floor, the 37,000 CFM rating is more meaningful than simply saying the fan is 10 feet wide. Higher airflow gives it the potential to serve a broader industrial circulation plan, provided the ceiling height, mounting area, and surrounding building systems are suitable. The model also includes timer and memory functions and remote control, while its published maximum motor speed is 72 RPM. As with any large industrial fan, actual placement should be based on the work zones and available overhead clearance rather than choosing a location only because it is the center of the room.
Final Thoughts
The right factory ceiling fan is determined by more than square footage.
Start with CFM, ceiling height, room volume, occupied work zones, and obstructions. Then decide whether one large industrial fan or several smaller fans will distribute air more effectively.
Choose the fan that moves the right amount of air through the areas where people actually need it.
